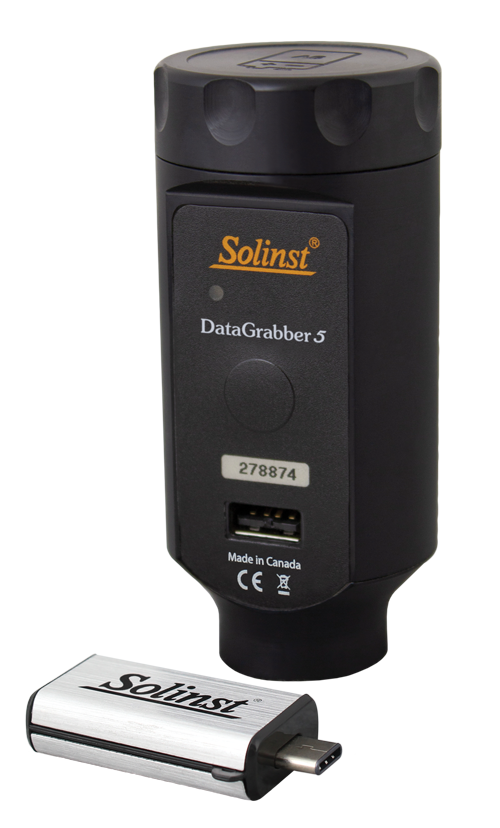

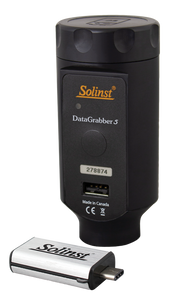

Solinst DataGrabber (for use with Model 3001/3002)

The Model 3001 DataGrabber 5 provides an inexpensive, and very portable option for Solinst datalogger users to download data directly to a USB flash drive key.

How the DataGrabber Works

The DataGrabber 5 connects to a Levelogger’s direct read cable; alternatively, an L5 Threaded or Slip Fit Adaptor allows you to connect it directly to a Levelogger 5. The DataGrabber connects to an AquaVent 5 Wellhead using a Connector Cable, or directly to a LevelVent 5 Wellhead. The USB flash drive key is plugged into the socket on the front of the DataGrabber.
A push-button on the DataGrabber 5 starts the downloading process. All of the data in the datalogger’s memory is transferred to the USB device. The DataGrabber comes with a 2 GB USB flash drive key with a second connection for a USB-C device, if required. It is also compatible with most other USB flash drives, including USB 3.0. The datalogger is not interrupted if it is still logging. The data in the datalogger memory is not erased.
A light changes color to indicate when the DataGrabber 5 is properly connected, when the data transfer is taking place, and when the data has been successfully downloaded. The DataGrabber uses one 9 volt alkaline or lithium battery that is easy to replace when required.
