Cygnus 6+ PRO Multi-Mode Ultrasonic Thickness Gauge
Cygnus 6+ PRO Multi-Mode Ultrasonic Thickness Gauge
Cygnus 6+ PRO Multi-Mode Ultrasonic Thickness Gauge
Cygnus Instruments

Cygnus 6+ PRO Multi-Mode Ultrasonic Thickness Gauge

Pine Item #54844

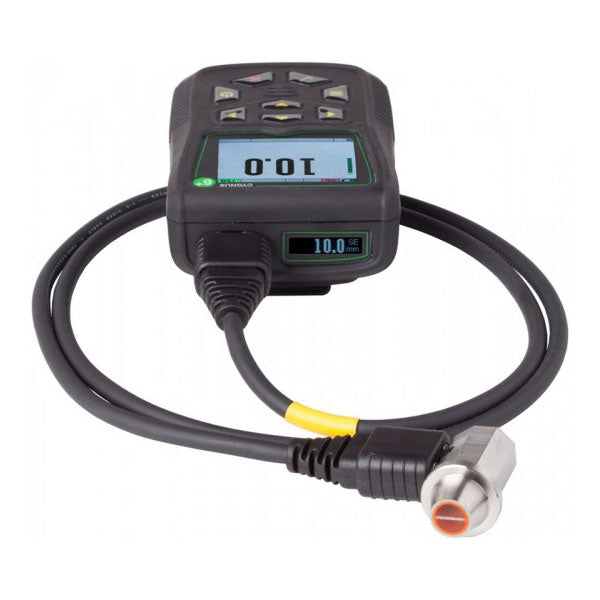

The NEW Cygnus 6+ ultrasonic thickness gauge has a large front LCD color display plus an end mounted OLED display, offering maximum versatility.

The gage includes comprehensive data logging, A-Scan, and B-Scan display, automatic and manual gain control, and Bluetooth connection.

The instrument has three measurement modes:

  • Multiple-Echo to provide extremely accurate measurements while ignoring protective coatings up to 20 mm thick
  • Echo-Echo for measurements on painted metals but with heavy back wall corrosion/pitting
  • Single-Echo for measurements on uncoated surfaces with the heavy front face and/or back-wall corrosion and attenuative materials such as cast metals or plastics/composites.

Designed for the harshest of environments, with a simple to use keypad, intuitive menus, and a color LCD display that can be viewed in all lighting conditions.

The twin shot injection molded enclosure has a soft but durable TPE outer skin which is both comfortable and robust while the inner shell is strong, keeping the electronics totally sealed from the outside world. Having passed the stringent US Military Standard 810G environmental tests, this new housing represents toughness and reliability.


Multiple-Echo for reliable, accurate through coating measurements

Single-Echo and Echo-Echo measuring modes with twin crystal probes for extreme corrosion and back wall pitting

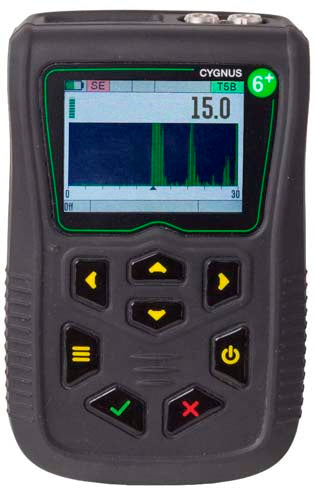

A-scan display

Real time B-scan display

Manual and automatic gain control

Comprehensive data logging capabilities

Bluetooth connectivity

MSI™ (Measurement Stability Indicator) used in Single‑Echo and Echo-Echo measurement modes

Dual display – large front LCD display and NEW high durability end-mounted LCD display with grayscale setting for bright sunlight

Deep-coat mode, measure through coatings up to 20 mm thick

Wrist mountable

Minimum / maximum measurement limit functions with visual and vibrate alert

Intuitive easy to use menu

Extremely rugged enclosure – shock and impact to US MIL STD 810G

Environmental sealing to IP67 – US MIL STD 810G

Cygnus echo strength bars to assist quick measurements

Buttons integral with the TPE moulding and designed for min 100,000 depressions.

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote


Technical Specifications

MaterialsSound velocities between 2000 - 9000 m/s (0.079 - 0.35 in/ms) - covers virtually all common engineering materials
Accuracy±0.1 mm (±0.004) or 0.1% of thickness measurement whichever is greatest when calibrated in accordance with Cygnus Instruments calibration
ResolutionMultiple-Echo mode - 0.1 or 0.05 mm (0.005" or 0.002") / Single-Echo and Echo-Echo modes - 0.01 mm (0.0004")
ProbesSingle crystal probes:\n6 mm (¼) - 5.0 MHz (S5A)\n13 mm (½) - 2.25 MHz (S2C (standard))\n3.5 MHz (S3C) or 5.0 MHz (S5C)\n19 mm (¾) - 2.25 MH
Measurement Range in SteelSingle crystal probes:\n3 - 250 mm (0.120\" - 10.00\") with 2.25 MHz probe (S2C/D)\n2 - 150 mm (0.080\" - 6.000\") with 3.5 MHz probe (S3C)\n1 - 50
ConnectorTwin Lemo 00
Power3 x AA batteries
Battery Life10 hours minimum
ElectronicsDual channel pulser
Display2.4" quarter VGA LCD and end-mounted OLED (rotatable)
Display Info.Thickness value A-scan B-scan and cross-section scan
Size132 mm x 82 mm x 34 mm (5.20" x 3.23" x 1.34")
Weight300 grams (10.58 oz) inc. batteries
Operating Temp.-10°C to 50°C (14°F to 122°F)
Data LoggingCapacity for up to 5000 points including A-scans
Computer SoftwareCygLink allows remote logging and viewing of A-scan graphs. Survey and report generation to PDF file. Graphic analysis of data and statistic
Environmental RatingIP67 MIL STD 810G Method 501.6 (high temp +55°C) MIL STD 810G Method 502.6 (low temp -20°C) MIL STD 810G Method 507.6 (humidity 95%) MIL STD
Shock and ImpactMIL STD 810G Method 514.7 (vibration - 1 hour each axis)\nMIL STD 810G Method 516.7 (shock 20g - 11ms half sine shock pulse 40g 11ms in each
ComplianceCE British Standard BS EN 15317:2013 (specification for the characterization and verification of ultrasonic thickness measuring equipment)
EnvironmentalRoHS WEEE Compliant
